Advanced公司有着30多年的连接器专业设计经验 , 并自家拥有多样化的生产设备及配件 , 可以创新设计高可靠的电子应用连接方案。跟竞争对手 , 与别不同。我司富经验的工程师与客户紧密联系 , 并能了解客户的应用要求 , 为客户提供专有的设计方案和高可靠性的快速样品。
生产各类插座及印刷板插针/插座，板对板连接器，IC插座和转换器，封装转换器，BGA插座:提供0.75至1.5mm间距,各种脚位均可订制
PGA插座:4至840位

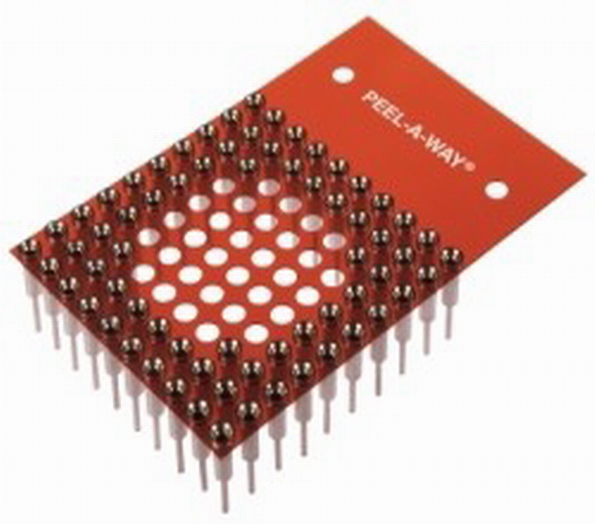

PEEL-A-WAY(轻揭式):专利无座式设计, 方便安装节省空间
插针/插座:数百款标准或非标准插座
订制:插针/插座可按客户要求
* RoHS Compliant, disposable carriers peel away after soldering
* Peel-A-Way® tabs and full grid wafer supplied
* 1 oz. (28.34g) average insertion force
* Maximum air flow under PGA for greater cooling
* Better flux rinse and cleaning
* Allows inspection of solder joints on both sides of PCB
* Custom designs available
* Available with gold/ gold or matte tin/ gold plating for lead-free compatible processing
端子:
Brass - Copper Alloy (C36000), ASTM-B-16
Solder Preforms: Available in standard Sn/Pb or lead-free Sn/Ag/Cu
簧片: Beryllium Copper - Copper Alloy C17200, ASTM-B-194
插座材料: Polyimide Film
产品资料:
参考连结:Contact Acceptance Range Data:
1. PGA Sockets Data Sheet - Standard Grid (Footprint) - Dimensional information, specifications, popular terminal options, how to order
AIC_PGA_Sockets_Std_16A_rev0.pdf
2. Design Your Own PGA Socket Form - Standard Grid - Provide your
device specs and select from a variety of insulator and terminal
options to request a quote on a customized PGA Socket or Adapter
AIC_PGA_Std_DesignYourOwn_16A_rev0.pdf
3. Design Your Own PGA Socket Form - Interstitial/Staggered Grid - Provide your device specs and select from a variety of insulator and terminal options to request a quote on a customized PGA Socket or Adapter
AIC_PGA_Stag_DesignYourOwn_16A_rev0.pdf
4. PGA Footprints - Standard Grid
AIC_PGA_Footprints_StandardGrid_rev0.pdf
5. PGA Footprints - Interstitial/Staggered Grid
AIC_PGA_Footprints_StaggeredGrid_rev0.pdf
