Advanced公司有着30多年的连接器专业设计经验 , 并自家拥有多样化的生产设备及配件 , 可以创新设计高可靠的电子应用连接方案。跟竞争对手 , 与别不同。我司富经验的工程师与客户紧密联系 , 并能了解客户的应用要求 , 为客户提供专有的设计方案和高可靠性的快速样品。
生产各类插座及印刷板插针/插座，板对板连接器，IC插座和转换器，封装转换器，BGA插座:提供0.75至1.5mm间距,各种脚位均可订制

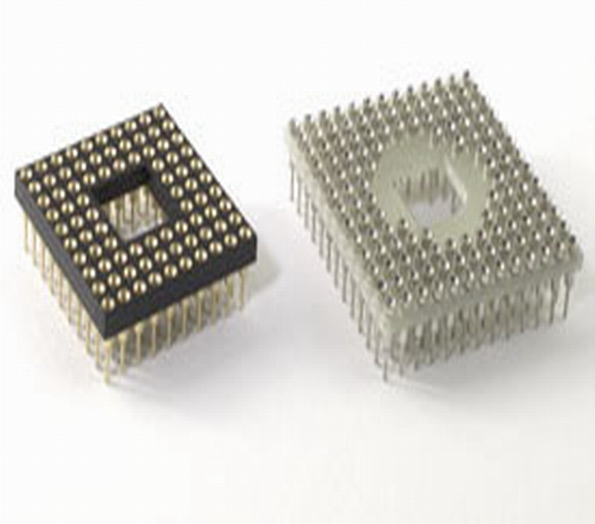

PGA插座:4至840位
PEEL-A-WAY(轻揭式):专利无座式设计, 方便安装节省空间
插针/插座:数百款标准或非标准插座
订制:插针/插座可按客户要求
* RoHS Compliant insulators (high temp. molded LCP or FR-4)
* As low as 1 oz. (28.34 g) average insertion force per pin
* Multiple finger contacts for reliability
* Over 500 PGA footprints available
* Closed bottom terminal for 100% anti-wicking of solder
* Tapered entry for ease of insertion
* Available with solder preform terminals for intrusive reflow applications (eliminates need for wave
soldering in mixed SMT/Thru-hole environments (see data sheet in Related Documents section)
* Available with gold/ gold or matte tin/ gold plating for lead-free compatible processing
端子:
Brass - Copper Alloy (C36000), ASTM-B-16
Solder Preforms: Available in standard Sn/Pb or lead-free Sn/Ag/Cu
簧片:
Beryllium Copper - Copper Alloy C17200, ASTM-B-194
插座材料:
RIS - High Temp. LCP Liquid Crystal Polymer
FIS - FR-4 Fiberglass Epoxy Board
Contact Acceptance Range Data:
1.PGA Sockets Data Sheet - Standard Grid (Footprint) - Dimensional information, specifications, popular terminal options, how to order
AIC_PGA_Sockets_Std_16A_rev0.pdf
2. PGA Sockets Data Sheet - Interstitial/Staggered Grid (Footprint) - Dimensional information, specifications, popular terminal options,
how to order.
AIC_PGA_Sockets_Stag_16A_rev0.pdf
3. Design Your Own PGA Socket Form - Standard Grid - Provide your device specs and select from a variety of insulator and terminal options to request a quote on a customized PGA Socket or Adapter
AIC_PGA_Std_DesignYourOwn_16A_rev0.pdf
4. Design Your Own PGA Socket Form - Interstitial/Staggered Grid - Provide your device specs and select from a variety of insulator and terminal options to request a quote on a customized PGA Socket or Adapter
AIC_PGA_Stag_DesignYourOwn_16A_rev0.pdf
5. PGA Footprints - Standard Grid
AIC_PGA_Footprints_StandardGrid_rev0.pdf
6. PGA Footprints - Interstitial/Staggered Grid
AIC_PGA_Footprints_StaggeredGrid_rev0.pdf
