Advanced公司有着30多年的连接器专业设计经验 , 并自家拥有多样化的生产设备及配件 , 可以创新设计高可靠的电子应用连接方案。跟竞争对手 , 与别不同。我司富经验的工程师与客户紧密联系 , 并能了解客户的应用要求 , 为客户提供专有的设计方案和高可靠性的快速样品。
生产各类插座及印刷板插针/插座，板对板连接器，IC插座和转换器，封装转换器，BGA插座:提供0.75至1.5mm间距,各种脚位均可订制
PGA插座:4至840位
PEEL-A-WAY(轻揭式):专利无座式设计, 方便安装节省空间
插针/插座:数百款标准或非标准插座
订制:插针/插座可按客户要求

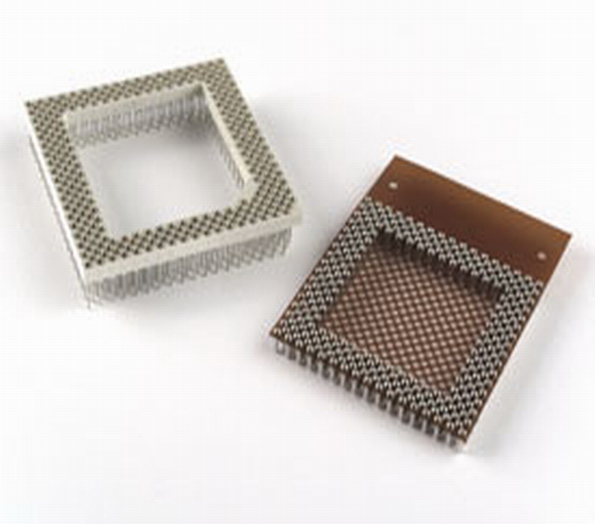

* Available in LCP high temperature molded insulators (RSX) or Peel-A-Way®
removable terminal carriers (KSX)
* .100" (2.54mm) centers pin to pin
* Multiple finger contact for reliability
* Tapered entry for ease of insertion
* Closed end construction for 100% anti-wicking of solder
* Available with SnPb or lead-free Sn/Ag/Cu solder preform terminals
* Available with matte tin/ gold or gold/ gold terminal/ contact plating for RoHS Compliant applications
端子:
Brass - Copper Alloy C36000, ASTM-B-16
簧片: Beryllium Copper - Copper Alloy C17200, ASTM-B-194
插座材料: RSX - LCP Liquid Crystal Polymer
KSX - Polyimide Film
Contact Acceptance Range Data:
1. PGA Sockets Data Sheet- Standard Grid (Footprint) - Dimensional information, specifications, popular terminal options, how to order
AIC_PGA_Sockets_Std_16A_rev0.pdf
2. PGA Sockets Data Sheet
- Interstitial/Staggered Grid (Footprint)
- Dimensional information, specifications, popular terminal options,
how to order
AIC_PGA_Sockets_Stag_16A_rev0.pdf
3. Design Your Own PGA Socket Form - Standard Grid - Provide your
device specs and select from a variety of insulator and terminal
options to request a quote on a customized PGA Socket or Adapter
AIC_PGA_Std_DesignYourOwn_16A_rev0.pdf
4. Design Your Own PGA Socket Form - Interstitial/Staggered Grid -
Provide your device specs and select from a variety of insulator and terminal options to request a quote on a customized PGA Socket or Adapter
AIC_PGA_Stag_DesignYourOwn_16A_rev0.pdf
5. PGA Footprints - Standard Grid
AIC_PGA_Footprints_StandardGrid_rev0.pdf
6. PGA Footprints - Interstitial/Staggered Grid
AIC_PGA_Footprints_StaggeredGrid_rev0.pdf
