Advanced公司有着30多年的连接器专业设计经验 , 并自家拥有多样化的生产设备及配件 , 可以创新设计高可靠的电子应用连接方案。跟竞争对手 , 与别不同。我司富经验的工程师与客户紧密联系 , 并能了解客户的应用要求 , 为客户提供专有的设计方案和高可靠性的快速样品。
生产各类插座及印刷板插针/插座，板对板连接器，IC插座和转换器，封装转换器，BGA插座:提供0.75至1.5mm间距,各种脚位均可订制
PGA插座:4至840位
PEEL-A-WAY(轻揭式):专利无座式设计, 方便安装节省空间
插针/插座:数百款标准或非标准插座
订制:插针/插座可按客户要求

端子:Brass - Copper Alloy (C36000), ASTM-B-16
Solder Preforms: Available in standard Sn/Pb or lead-free Sn/Ag/Cu
The screw-machined pins offer superior durability over stamped-and-formed products while reducing assembly time and safety concerns.

* The Advanced design features a rounded terminal head, significantly reducing the
potential for pinprick injuries to employees' fingers during assembly and subsequent
board handling, compared to traditional sharp-pointed .025 inch square-post test pins.

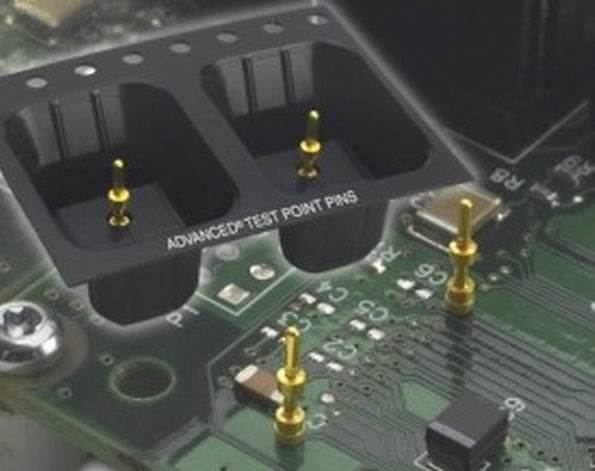

* Advanced's Test Point Pins can be individually packaged in tape and reel pockets to
facilitate automated insertion.
* To further reduce processing costs when used on surface mount PC boards, Test Pins
with unique solder preforms are available. When used in an intrusive reflow application,
the preform eliminates the need for wave or hand soldering, providing the strength of a
thru-hole connection point without the need for additional board processing in SMT
applications.
* The pins are precision-machined from Brass Copper Alloy and plated with either Matte
Tin or Gold over Nickel for RoHS compliant applications or Tin/Lead over Nickel for
RoHS exempt applications.
* Typical lead time is 6-8 weeks.

Test Point Pin Data Sheet - Overview of features and capabilities


 AIC_TESTPIN-TECH07_rev0.pdf
