~ 额定功率高达40W
~ 全范围输入电压高效率
~ 工作(典型效率89%)
~ 软启动
~ 隔离电压1500Vdc
~ 集成LC输入滤波
~ 永久性短路保护
~ 输出调节范围: -20/+10%
~ 无光电耦合器, 高可靠
~ 符合RoHs标准

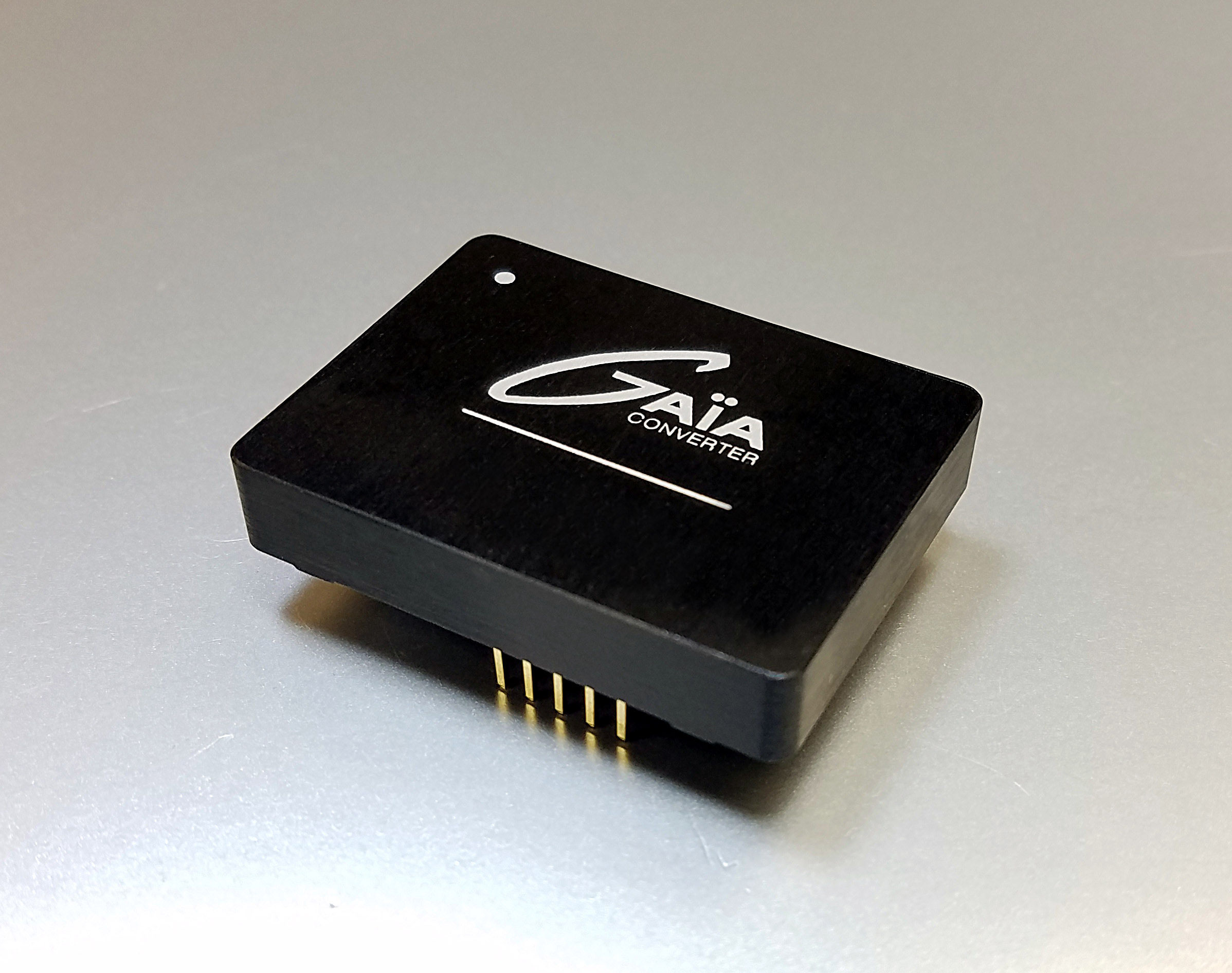

Gaia's MGDD-40 Series of High-Reliability DC-DC Converters are designed for higher operating temperatures of -40 to +105°C (optional -55°C) with input ranges required for typical military & airborne applications.
All Hi-Rel models come standard with On/Off function (/M option only for Industrial models).
Available Options (see specs for details):
• T = -55°C Start-Up Temperature
• S = Screening & Serialization
|
MODEL
|
INPUT
|
# of Outputs
|
Vout
|
Iout
|
Options
|
|
MGDD-40-E-B
|
4.5-33 VDC
|
Dual (isolated)
|
2 x 3.3V
|
4.000A
|
T, S
|
|
MGDD-40-E-C
|
4.5-33 VDC
|
Dual (isolated)
|
2 x 5V
|
4.000A
|
T, S
|
|
MGDD-40-E-E
|
4.5-33 VDC
|
Dual (isolated)
|
2 x 12V
|
1.65A
|
T, S
|
|
MGDD-40-E-F
|
4.5-33 VDC
|
Dual (isolated)
|
2 x 15V
|
1.30A
|
T, S
|
|
MGDD-40-E-I
|
4.5-33 VDC
|
Dual (isolated)
|
2 x 24V
|
0.85A
|
T, S
|
|
MGDD-40-N-B
|
9-60 VDC
|
Dual (isolated)
|
2 x 3.3V
|
4.000A
|
T, S
|
|
MGDD-40-N-C
|
9-60 VDC
|
Dual (isolated)
|
2 x 5V
|
4.000A
|
T, S
|
|
MGDD-40-N-E
|
9-60 VDC
|
Dual (isolated)
|
2 x 12V
|
1.65A
|
T, S
|
|
MGDD-40-N-F
|
9-60 VDC
|
Dual (isolated)
|
2 x 15V
|
1.30A
|
T, S
|
|
MGDD-40-N-I
|
9-60 VDC
|
Dual (isolated)
|
2 x 24V
|
0.85A
|
T, S
|
9-75V extended range also available, please contact factory. Please contact us if you need different input / output voltages.
